Carryalls / Backpacks / Digital sewing pattern
Medium backpack
A single-compartment backpack with a zipped main opening, a front pocket, side pockets and a small inside pocket. The design includes padded shoulder straps, a padded back and base, and a webbing haul loop.
Buy my pattern on Adobe StockFile formats: AI/EPS, JPEG
Pattern details
Measurements
- Size
- One size
- Back length
- 43 cm
- Back width
- 36 cm
- Bottom
- 36 × 15 cm
Add seam allowances unless an individual piece is marked as including them.
The accessory list specifies 5 m of 25 mm webbing, padding for the straps, back and base, and zips of 65 cm, 40 cm, two at 35 cm and 20 cm.
The sheet also lists adhesive fastener tape, strap sliders and quick-release buckles.
The pattern includes grainlines, fold marks and a 10 × 10 cm control square.
Main pattern pieces
- Shoulder straps
- Cut 4 main fabric + 2 foam
- Haul loop
- 1 webbing piece · 20 × 2.5 cm including allowances
- Back, top and bottom sections
- Each: 1 main fabric + 1 lining + 1 padding
- Front section
- 1 main fabric + 1 lining
- Front pocket
- 1 main fabric + 1 lining; optional padding
- Front pocket extension
- Cut 1 · 36 × 4 cm
- Front pocket zipper-end finish
- Cut 2 main fabric
- Side pockets
- Each side: 2 main fabric + 1 lining + 1 padding
- Side pocket extension
- Cut 2 · 40 × 7 cm, allowances included
- Central sections
- Back-side and front-side sections joined by the zip
- Bottom
- 1 main fabric + 1 lining + 1 foam
- Small inside pocket
- 22 × 42 cm, allowances included

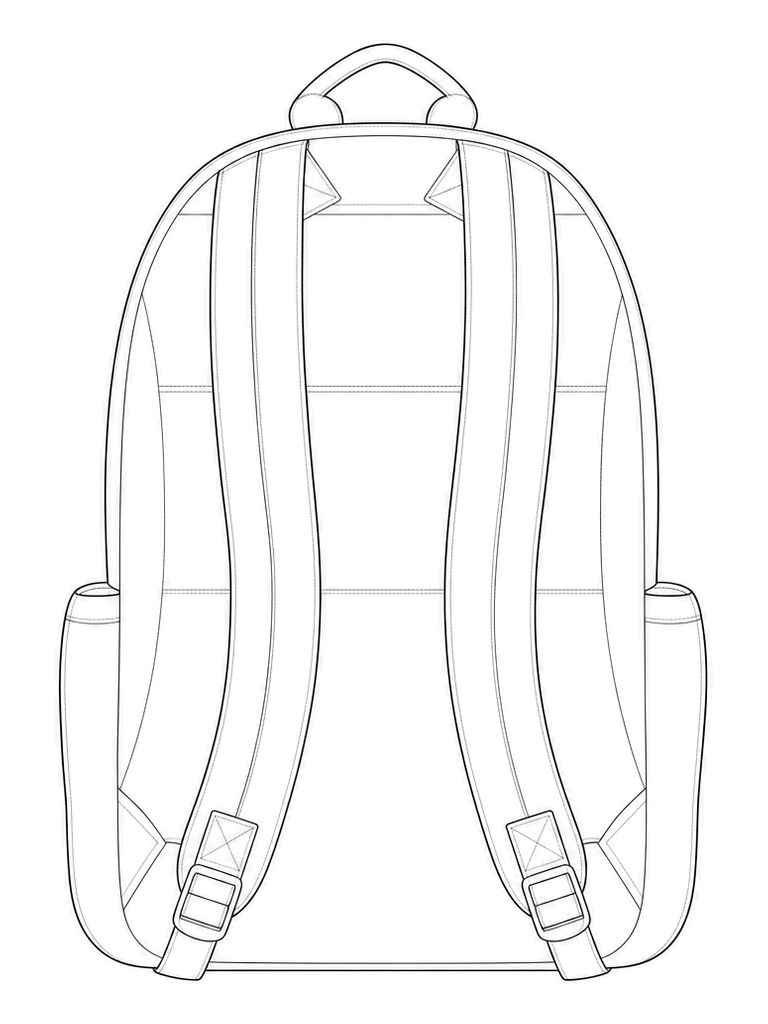

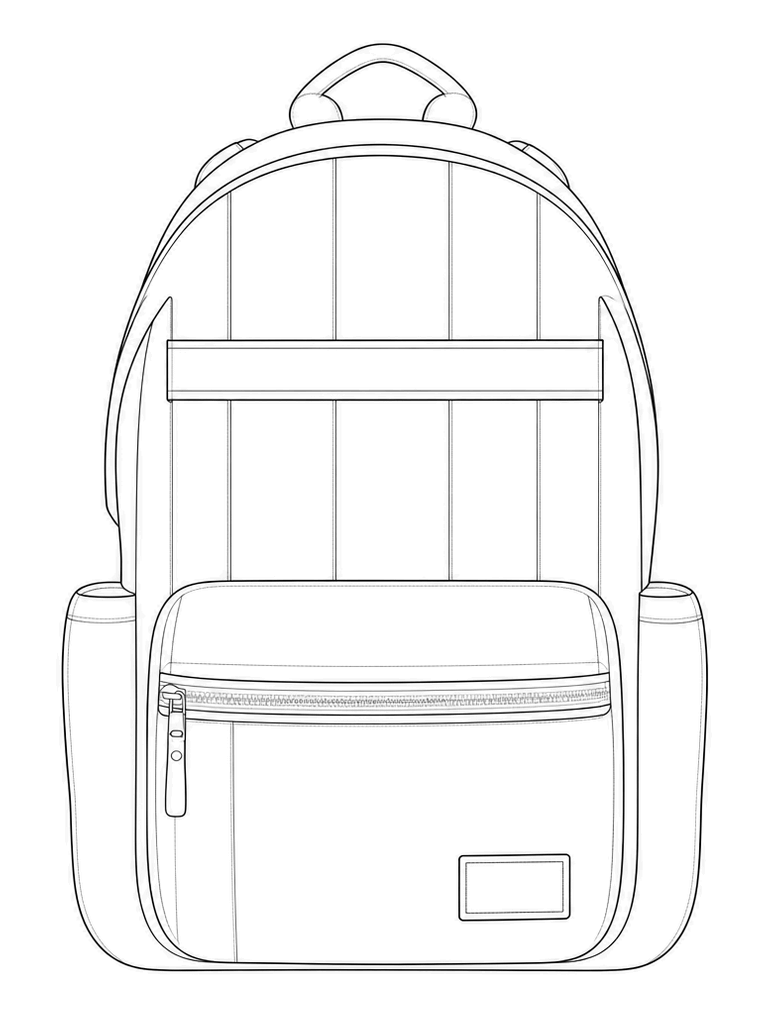

Pattern preview
