Women's dress with gathered waist

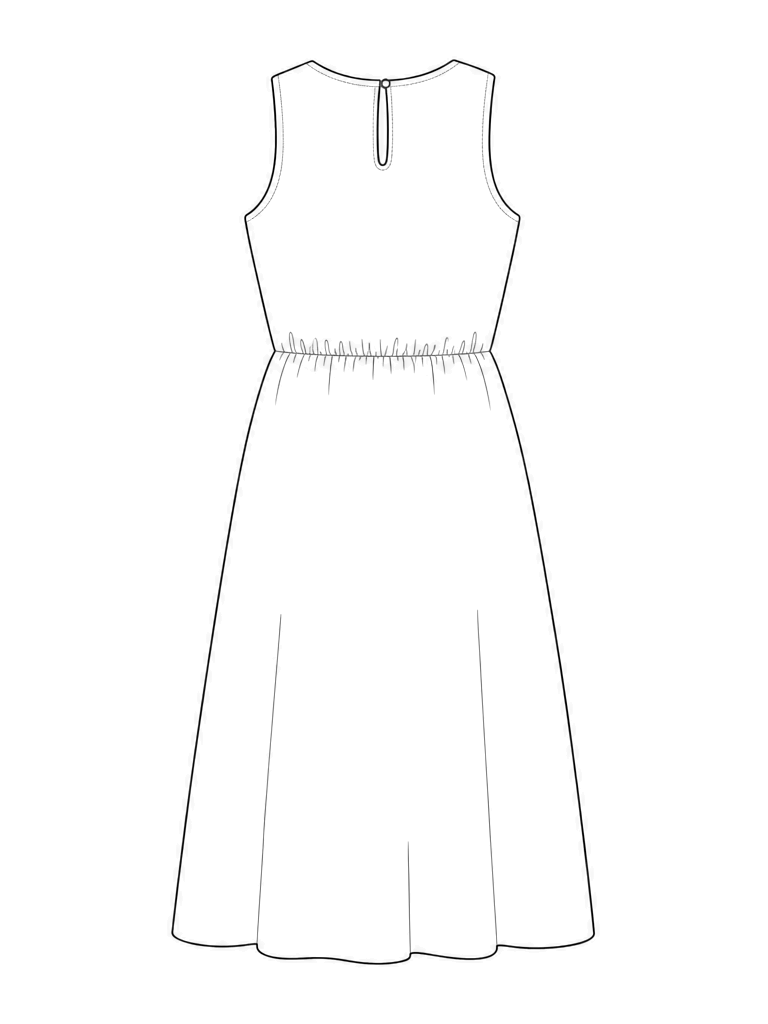

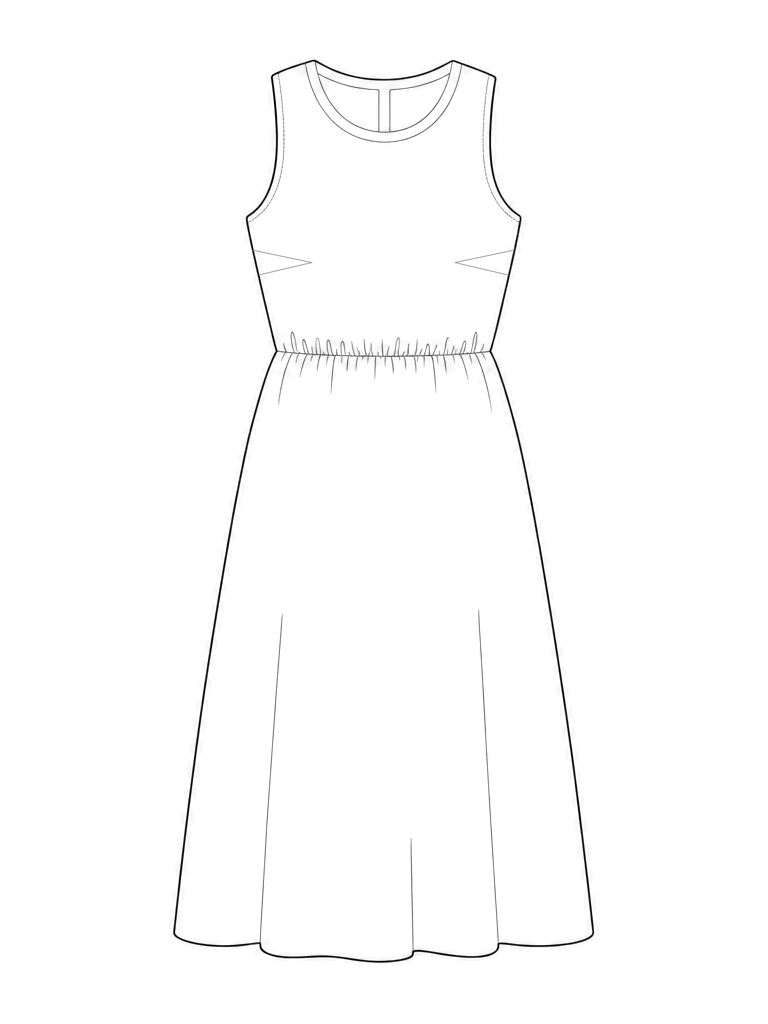

A sleeveless dress with a gathered elastic waist, a flared skirt and a slit-and-button closure at the back neckline. The pattern includes a separate belt and front and back neck-and-armhole facings.
Buy my pattern on Adobe StockFile formats: AI/EPS, JPEG
Pattern details
Size and body measurements
- Size
- S-M
- Height
- 155-168 cm
- Waist
- 74 cm
- Chest
- 90 cm
- Hips
- 92 cm
- Back length
- 101 cm
- Waist elastic
- 80 × 1 cm
- Shorter skirt length
- 60 cm
Add seam allowances to the dress pieces; the belt includes allowances.
A shorter hemline is marked for a height of approximately 155 cm, giving a 60 cm skirt length.
The pattern includes grainlines, fold marks and a 10 × 10 cm control square.

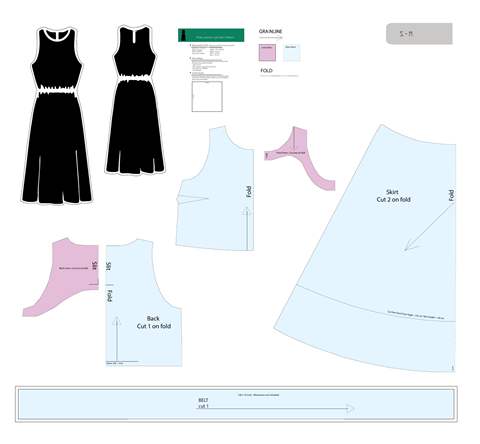

Main pattern pieces
- Front bodice
- Cut 1 on fold
- Back bodice
- Cut 1 on fold
- Skirt
- Cut 2 on fold
- Front facing
- Cut 1 on fold
- Back facing
- Cut 1 on fold
- Belt
- Cut 1 · 146 × 10 cm, allowances included
Pattern preview
